AERIAL WORK PLATFORM - SCISSOR LIFT & BOOM LIFT
ARTICULATING BOOM LIFT, 43' ELECTRIC
Image for reference only
Click on above thumbnails for alternate view |
|
Manufacturer: Manitou
Model: AETJ 43
Daily: $400.00
Weekly: $1,000.00
Monthly: $2,400.00
Instructions: <Click Here>
Additional Information
- WE PAY THE SALES TAX ON RENTALS
- No Added Environmental Fees!
- When comparing prices on 43' boom lift rentals in Gilroy, San Jose and Hollister, ask about sales tax and environmental fees.

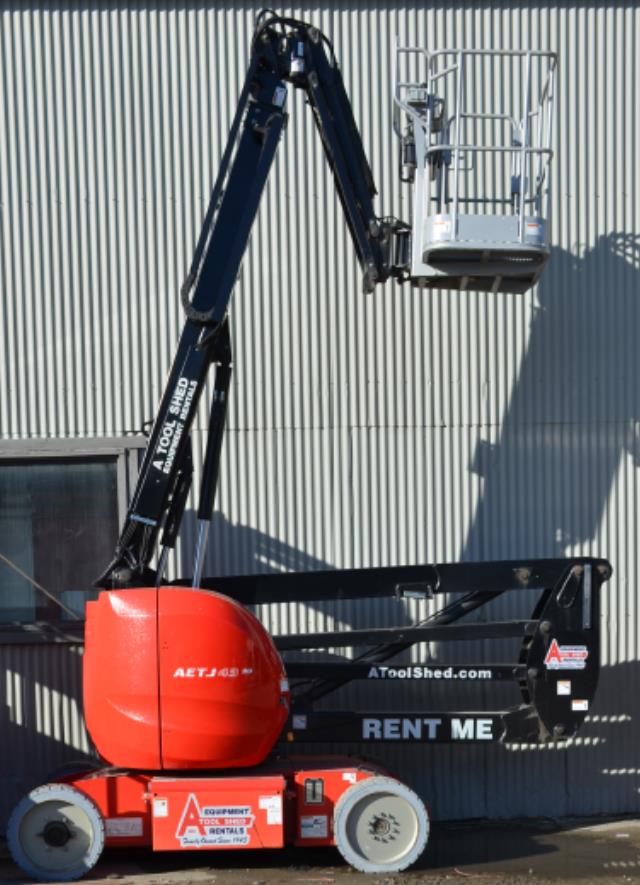

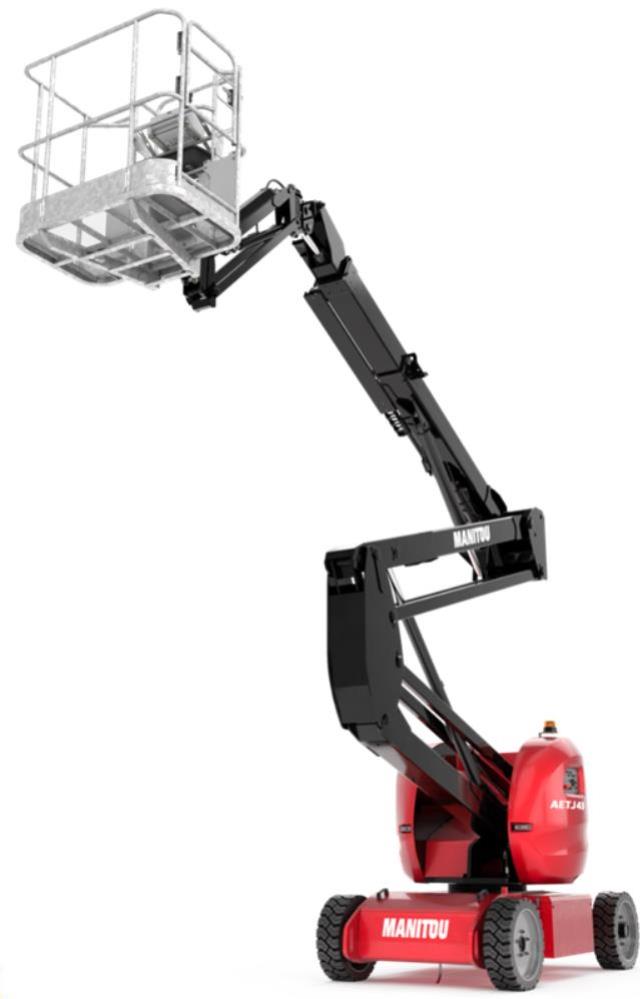

- Manitou AETJ 43 Clean Battery Powered Z-Boom with Jib
- The Manitou AETJ 43 Battery electric articulating boom lift is ideal for indoor applications that demand low noise and clean performance with the quiet, clean efficiency of 100% electric-powered units.

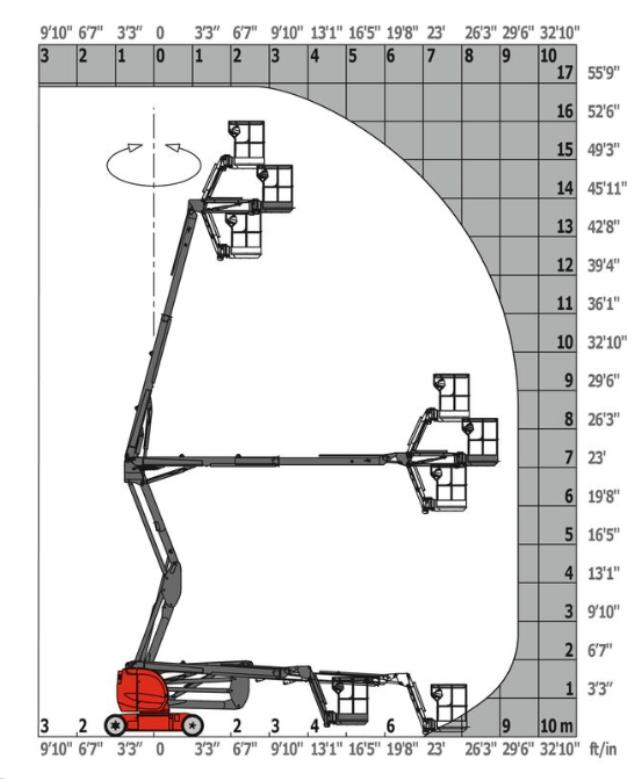

- Capacities:
- Working height 49 ft 3 in
- Platform height 42 ft 8 in
- Max. outreach 24 ft 11 in
- Overhang 3 ft
- Pendular arm rotation (top / bottom) +65 / -65
- Platform capacity 500 lbs
- Turret rotation 355
- Platform rotation (right / left) 66 / 59
- Number of people (inside) 2
- Weight and Dimensions:
- Approximate weight 16,381 lbs
- Platform dimensions (length x width) 3 ft 11 in x 3 ft
- Overall width 4 ft 11 in
- Overall length 19 ft 10 in
- Overall height 6 ft 6 in
- Overall length (stowed) 14 ft 5 in
- Overall height (stowed) 6 ft 10 in
- Floor height (access) 1 ft 4 in
- Jib length 4 ft 2 in
- Counterweight offset (turret at 90 ) 5 in
- Internal turning radius (over tires) 6 ft 2 in
- External turning radius 13 ft
- Tail swing 5 in
- Ground clearance at center of wheelbase 6 in
- Wheelbase 6 ft 7 in
- Solid non-marking tires
- Performance:
- Drive speed stowed 3 mi/h
- Drive speed raised 0.37 mi/h
- Gradeability 22 %
- Permissible leveling 3
- Engine/Battery:
- Electric engine power rating 2 x 4 kW
- Electric Pump 4 kW
- Battery / Batteries capacity 48 V / 240 Ah
- Integrated charger (V / A) 48 V / 30 mA
- Number of cycles with STD Battery 44
- Ground Pressure 196 PSI
- Hydraulic tank capacity 4 US gal
- Rental rates do not include Delivery Fees.
- OSHA requires a Safety Harness with Lanyard attached to be worn by anyone in the Platform
- Approved Credit Card Required for Deposit.
* Prices are subject to change. We do not charge sales tax on rental items. Equipment Protection Plan always optional but not included in these prices. Please note that all Monthly Rates are for 28 days with a maximum of 160 hours.
* Please call us with any questions about our articulating boom lift 43 foot electric rentals serving the Greater Bay Area and the Monterey Peninsula, including San Jose, Campbell, Salinas, Santa Cruz, Watsonville, Morgan Hill, Hollister, Santa Clara, Gilroy, Milpitas, Sunnyvale, Fremont, and Salinas.
